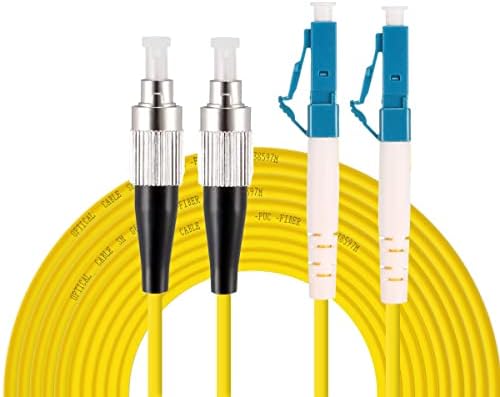

patch cord FC-LC /UPC, single mode, Duplex, PVC. 3mm
•Optical fiber patch cord used as cross- connect jumpers, equipment and work area cords in fiber 0ptic telecommunications and FTTH (Fiber To The Home);CATV & CCTV;Data Processing Networks
•All optical fi-ber patch cords are 100% factory tested for insertion and return loss to ensure transmission
performance per ANSI/TIA-568-C.3 standard specifications
patch cord FC-LC /UPC, single mode, Duplex, PVC. 3mm
•Transmission Media
9/125-μm singlemode (OS2) optical fiber
•Connector Type:
LC UPC/singlemode
•Construction:
“Duplex fiber cordage”
Transmission Perormance
ANSI/TIA/EIA-568-C.3:insertion loss and retrun loss ( 100% tested )
For 9/125-um single mode optical fiber
Return loss: UPC: ≤ -50 dB
&n bsp; APC: ≤ -60 dB
Insertion loss: typical – 0.2 dB, max – 0.3 dB
Mechanical
Connector ferrule: ceramic
End-face radius of curvature: 10 mm < R < 30 mm
Apex offset: < 50 μm
Cable material: PVC or LSZH
Cable jacket color: Yellow for Single Mode patch cord
Operation temperature: -20 °C to +70 °C
